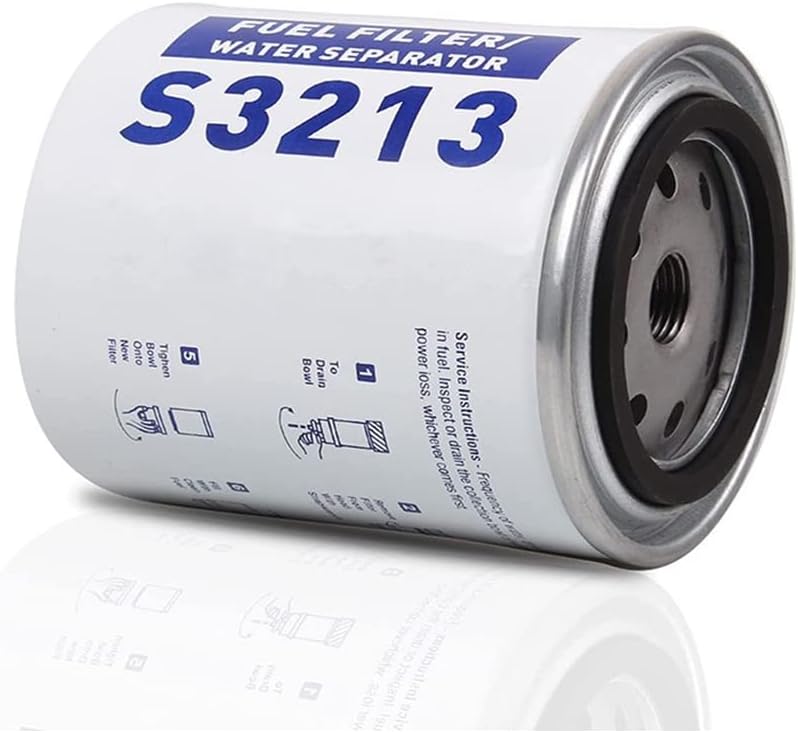

Marine Fuel Water Separator Filter Element S3213 Replacement 10 Micron

Marine Fuel Filter And Water Separator Element Diesel & Unleaded

10-Micron Elements: Best for modern outboard and inboard four-stroke or two-stroke fuel-injected (EFI) gasoline & Diesel engines.

OEM Replacement Reference (For Compatibility Only)

Replaces OEM Part Numbers:
35-60494-1, S3213, B32013, 18-7932-1, 18-7932, 18-7928-1, 18-7928,
35-809097, MAR-24563-03-00, 18-7919, 18-7919-1,
18-7922-1, 18-7922, 18-7853-1

Part numbers are for reference only.

Installation Notes

• Direct replacement, no modification required
• Pre-fill clean fuel on the dirty side of the filter before installation
• Do not reuse old filter elements
• After installation, prime the fuel system and check for leaks

High Quality Filtration Media

• Made with 3-layer synthetic fibre filter media
• Efficiently filters water, iron oxide, dust and other contaminants
• Reduces wear on fuel system components
• Helps improve fuel efficiency and engine reliability

Product Features

1. Direct fit replacement, easy installation

2. Filters solid impurities and emulsified water

3. Protects fuel injectors and engine components

4. Reduces clogging and fuel system wear

5. Up to 10x reduction in hard particle penetration

6. Twice the contaminant holding capacity of standard filters

7. Over 99.6% filtration efficiency at 10 microns

Technical Details

• Filter Rating: 10 Micron
• Port Size: 3/8" NPT
• Durable powder-coated metal housing
• Suitable for marine outboard fuel systems and diesel fuel applications

Specification:

Viton Seal Orings
10 Micron Filter Cartridge

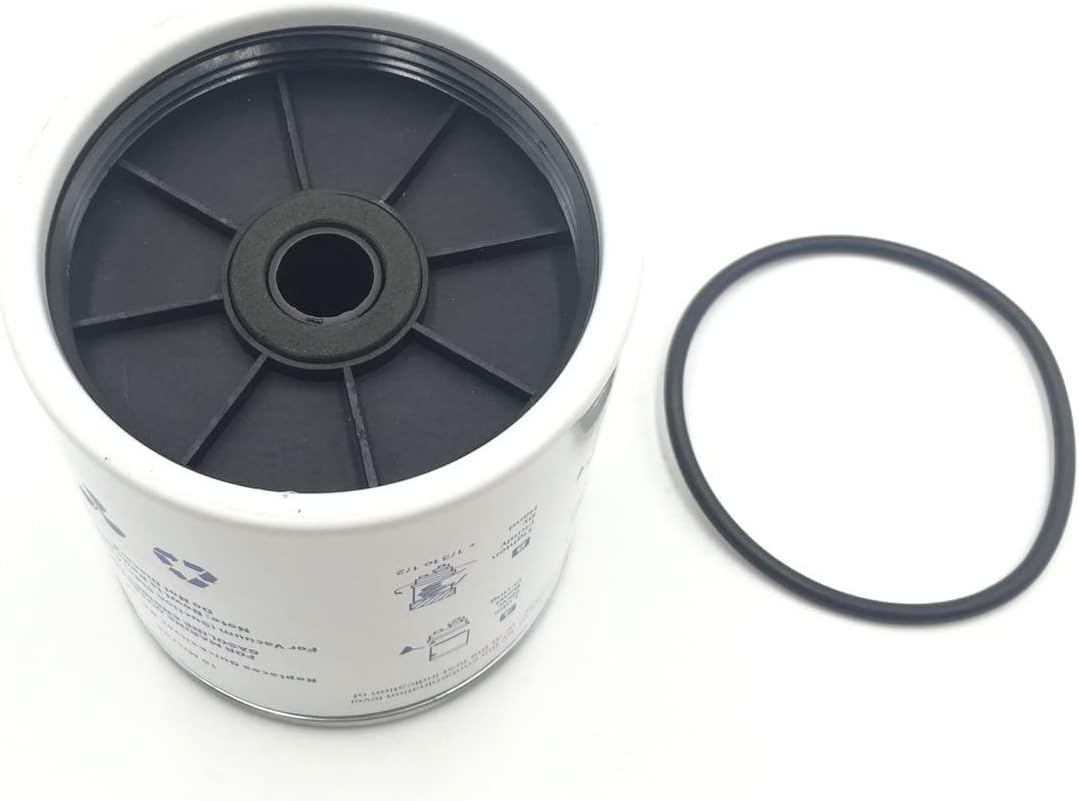

To Replace Element:

1. Loosen self-venting drain plug and drain the element into a container.
2. Remove filter element from mounting bracket with bowl connected.
3. Remove bowl from filter element and clean o-ring gland on bowl. BOWL IS REUSABLE  DO NOT DISCARD.
4. Lubricate o-ring with oil or grease and install on bowl.
5. Install bowl onto new element, tighten by hand.
6. Lubricate filter top seal with oil or grease.
7. Fill filter/bowl assemble with clean fuel and attach onto mounting bracket, tighten by hand.
8. Start engine and check to ensure there are no leaks.
